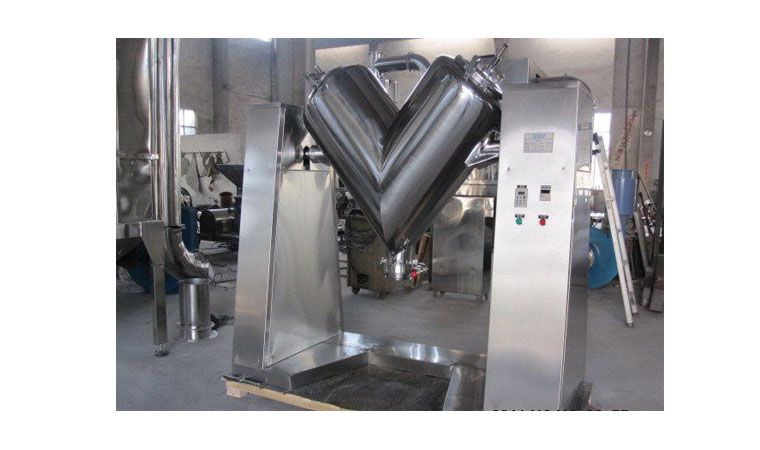

The mixer is used mixing of dry granule materials for pharmacy or other relative industries. Unique structure of mixing cylinder, high mixing efficiency, free of dead corner, and even mixing.

The mixing barrel  made of  5mm  SUS316L, stainless steel welding and polishing, external bright polishing, internal fine polishing.

The bracket and frame made of 10#, 12# and 14# channel steel(A3),   surface paint processing.

Auto Position control and reset.

Mixing Speed control by Inverter,  Power: 7.5Kw  Brand: Delta

Motor brand: ABB      7.5KW-6

Low  pressure electrical:  Schneider brand.

Cover Board  made of SUS304, thickness: 1.5mm;    surface wire drawing.

Gear Reducer type WPA-170 1:30 :

Dia. Of  Feeder hopper: 450mm.  Dia. Of Discharge valve : 200m.

Adopt  sanitary valves.

Meet GMP requirements,   Inner surface Mirror polishing.

Space:  L 4000*W 2600 * H3250mm
